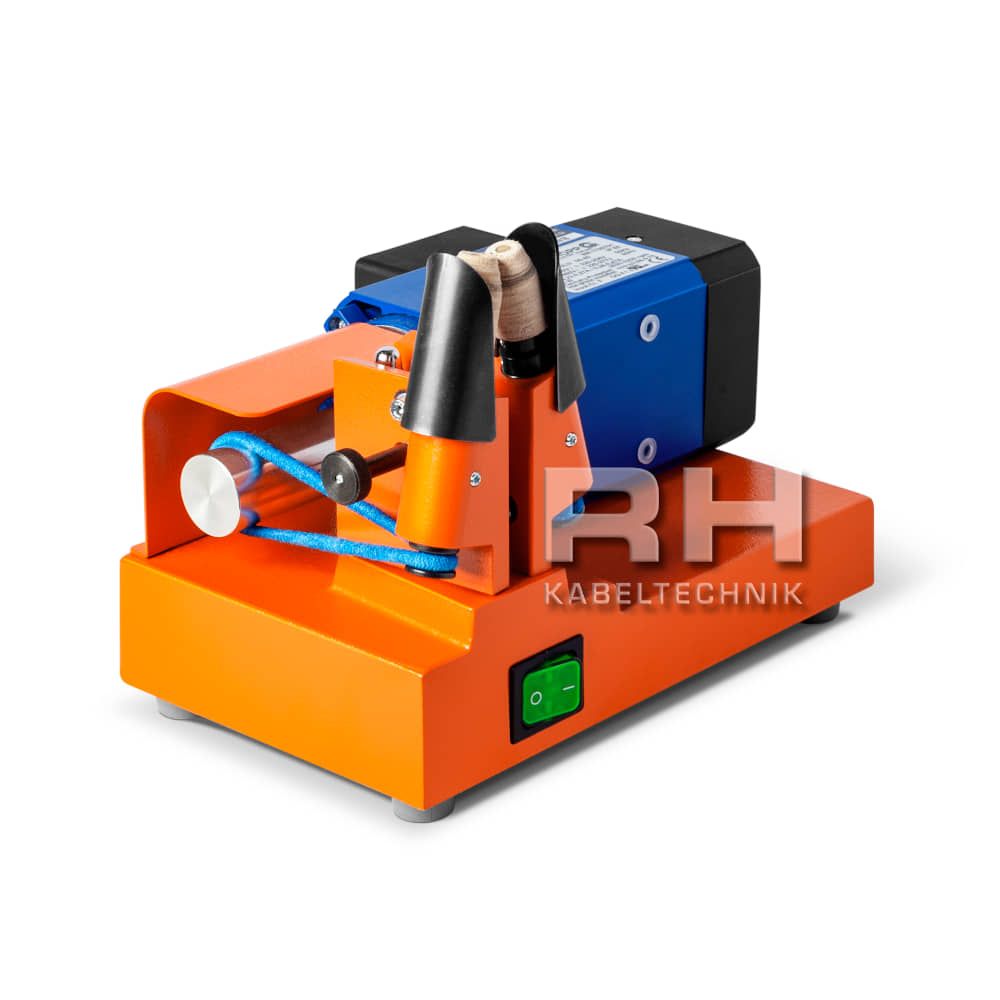

Electrical table stripping machine for very thin enamelled copper wires

Electrical table stripping machine for enamelled copper wires with diameters from 0.04 to 0.3 mm.

The enamelled wire is inserted between the rotating, conical glass-fibre bevel brushes from the top (or from the front). When the wire is pulled out, the enamel has been brushed off. A knurled screw is used to adjust the distance of the bevel brushes to the respective wire diameter.

There are two brush types with different hardness available for different insulating coatings and wire thicknesses.

Data sheet Finofix
