Stripmaxe

Trimming and stripping made possible in one machine.

Stripping device for simultaneous stripping of inner conductors of multicore cables or ribbon cables up to a width of 85 mm.

  • Stripping of stranded wires with extremely short stripping lengths on 2-core cables
  • For different cross-sections in one cable
  • Stripping of different stripping lengths in one cable
  • Stripping of single cores, with shaped blades up to 16 qmm

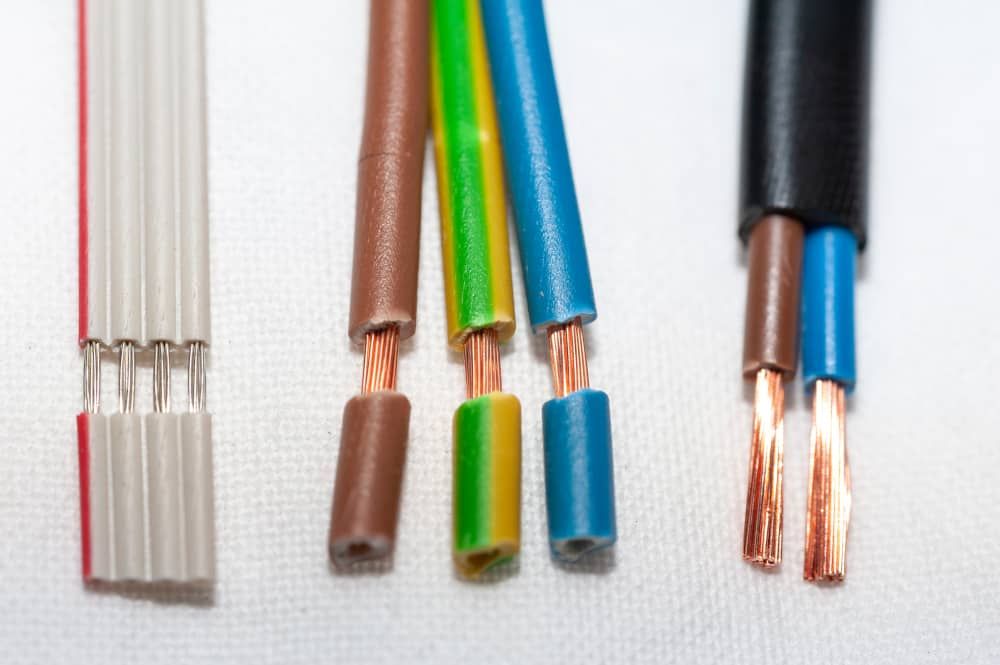

  • Full stripping or partial stripping possible for stripping lengths up to 30 mm
  • Stripping of small cable cross-sections and short stripping lengths
  • Adjustable clamping pressure for delicate insulations (optional)
  • Increased clamping for hard insulations (optional)

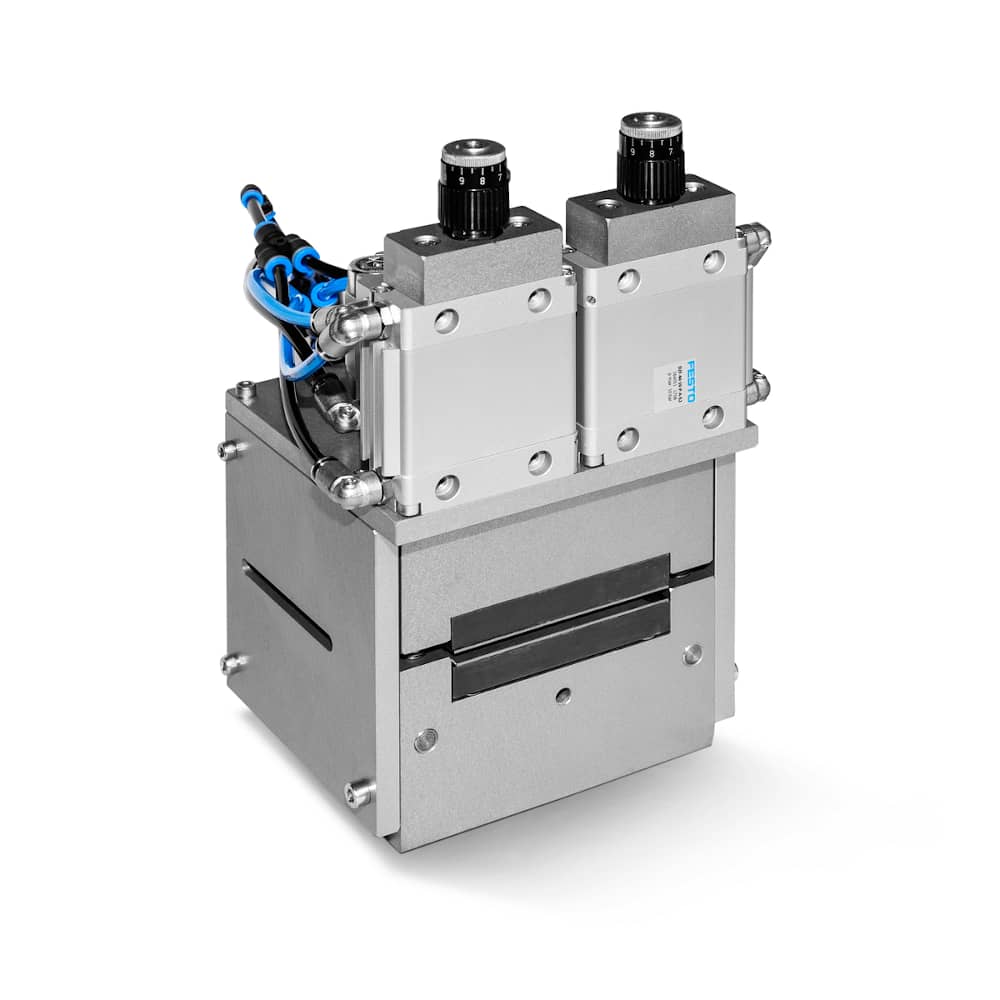

Stripping machine Stripmaxe -
OUR PNEUMATIC STRIPPING MACHINE

When it comes to simple, safe and precise stripping of cables, we at RH Kabeltechnik have the right solution for you. With our self-developed stripping machine Stripmaxe we enable you to re-cut and strip in one machine.

Our pneumatic stripping device is also used when the simultaneous stripping of inner conductors is required for multi-core cables or flat ribbon cables up to 85 mm wide. Through many different additional functions we can optimize your manufacturing processes!

Stripping machine customized for your requirements

If you rely on our company, you will not only benefit from over 30 years of experience in cable technology, but also from customized special solutions. Our stripping machine convinces with a customer-specific design.

Whatever your wishes and requirements are, we can individually adapt our stripping machine to your problems. For example, it is possible to produce different cross-sections without the need for new settings on the machine.

What functionality can our stripping machine Stripmaxe offer you?

Depending on the equipment, the following functions are possible:

  • Strip inner conductors of multicore cables simultaneously
  • Stripping flat ribbon cables up to 85 mm width
  • re-cutting and stripping in one machine
  • stripping of strands of extremely short stripping lengths on 2-core cables
  • suitable for different cross-sections in one cable
  • Stripping of different stripping lengths in one cable
  • Stripping of single wires with form blades up to 16 qmm
  • Full stripping or partial stripping possible for stripping lengths up to 30 mm
  • stripping of small cable cross-sections and short stripping lengths
  • adjustable pressure at the clamping for sensitive insulations (optional)
  • reinforced clamping for hard insulations (optional)

The most important features of the stripping device at a glance:

  • Compressed air connection: 6 bar
  • Weight: 8 to 9 kg (depending on equipment)
  • Stripping length: max. 30 mm
  • Stripping cross-section: customer-specific according to cable sample

Please feel free to contact us. Our team of experts will advise you individually on your requirements and find the best possible solution together with you!
